ZEISS Precision Shooting

ZEISS Pro-Series MAX-DUTY Tripod Kits

Built for speed and stability.

In precision rifle competition, it comes down to the final score and time of completion to determine the winner. There are no excuses! Knowing this, ZEISS introduces the Pro-Series Tripod Kit – MAX-DUTY model. It offers massive 44 mm diameter, 10-layer carbon fiber legs, coupled with an exclusive and highly innovative single-point leg adjustment system for fast deployment and stowing of the three-section leg(s). This saves approximately 7-15 seconds of valuable set-up time for each respective stage of the competition.

Carbon fiber tripod with adjustable legs and a fluid pan head, designed for professional camera support, shown on a white background.
Carbon fiber tripod with adjustable legs and a fluid pan head, designed for professional camera support, shown on a white background.

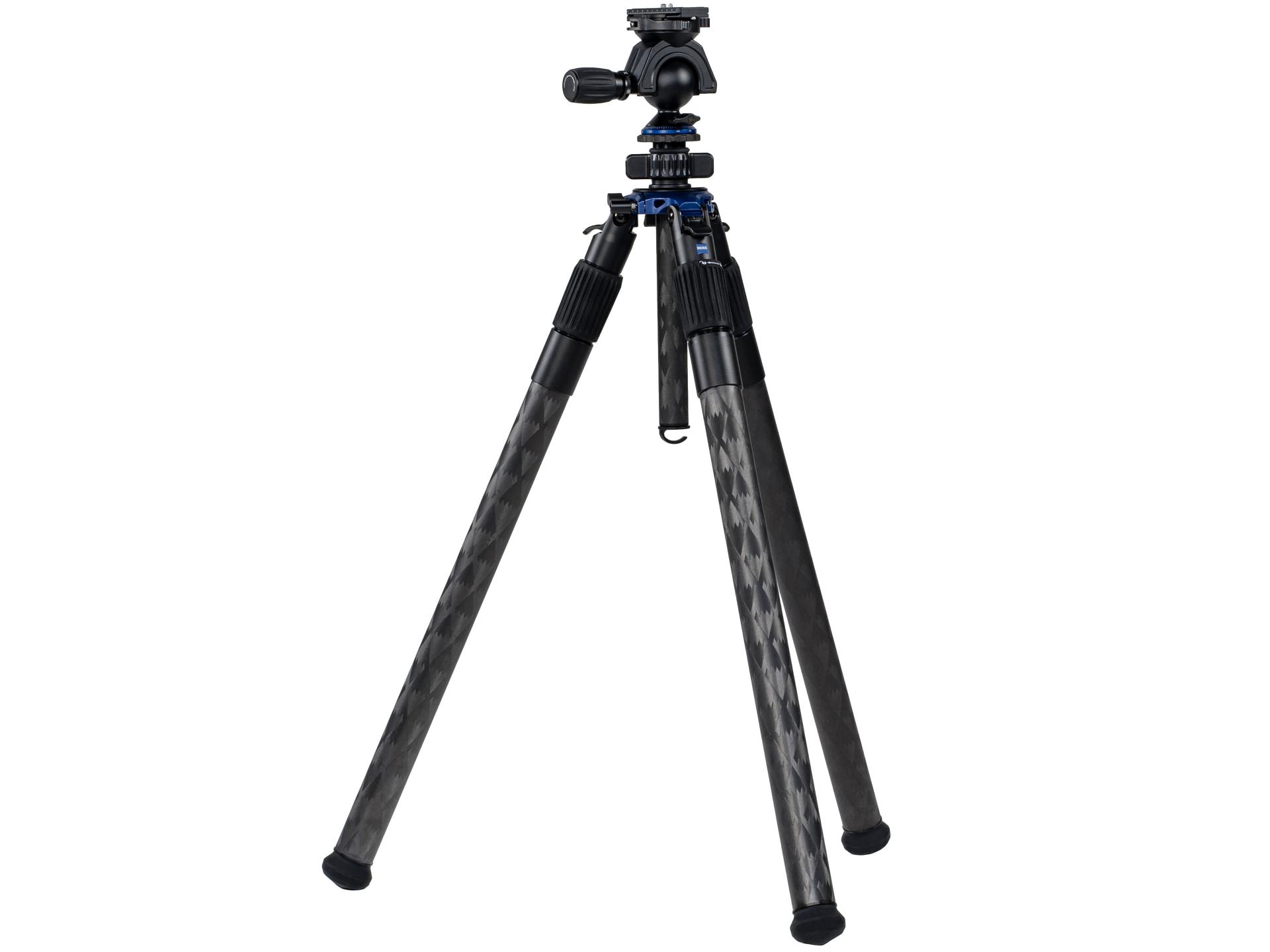

MAX-DUTY V

The MAX-DUTY V includes Ballhead V-60 (Versatile), having 115 degrees of adjustment. This provides a greater amount of tilt angle adjustments over multiple compound directions.

Carbon fiber tripod with adjustable legs and a fluid pan head, designed for ZEISS optical equipment.
Carbon fiber tripod with adjustable legs and a fluid pan head, designed for ZEISS optical equipment.

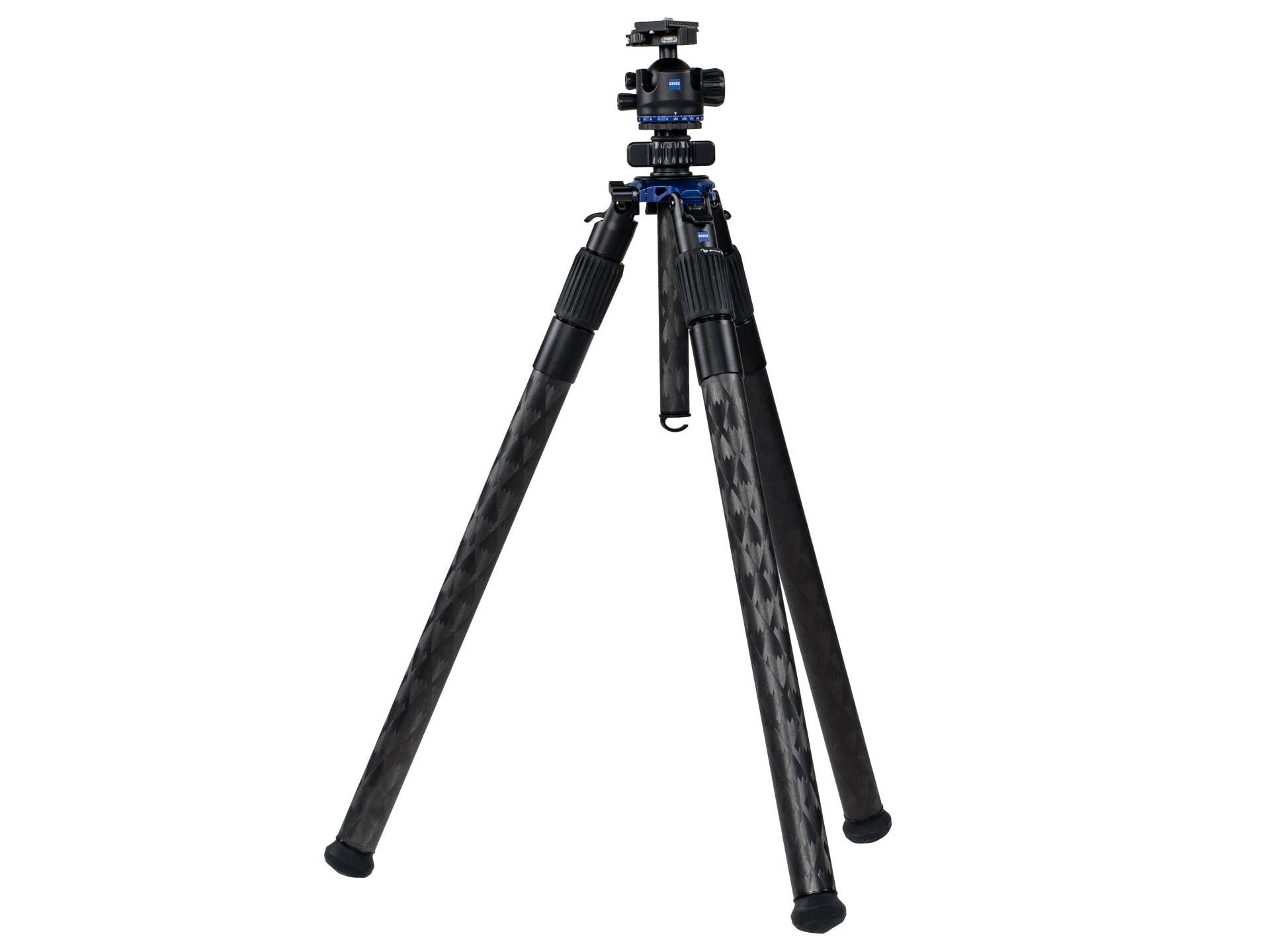

MAX-DUTY L

The MAX-DUTY L comes with Ballhead L-55 (Low Profile) allowing adjustments up to 90 degrees. The lower profile of the head provides more overall stability. It is 3 cm | 0.8 inches shorter at full length than the V model, and weighs 0.2 kg | 0.5 lbs less.

Introduction Video

ZEISS Pro-Series Tripod Kit - MAX-DUTY for Precision Rifle Competition

In this video, our competitors dive into the features and benefits of the Pro-Series Tripod Kit - MAX-DUTY, designed for unmatched stability and versatility in precision rifle shooting. This advanced competition-ready tripod comes equipped with a highly versatile ballhead, a removable center column, and essential accessories – all bundled together for a seamless purchase experience.

A man is using ZEISS optics mounted on a tripod while aiming outdoors under a clear blue sky.

Exceptional Stability

  • Optimized 44 mm carbon-fiber leg diameter (36/40/44 mm)
  • Large, thread-in rubber feet for stay-in-place footing
  • Multi-angle leg positions consisting of 24, 55, and 85 degrees
  • Multiple adjustments for hassle-free stability

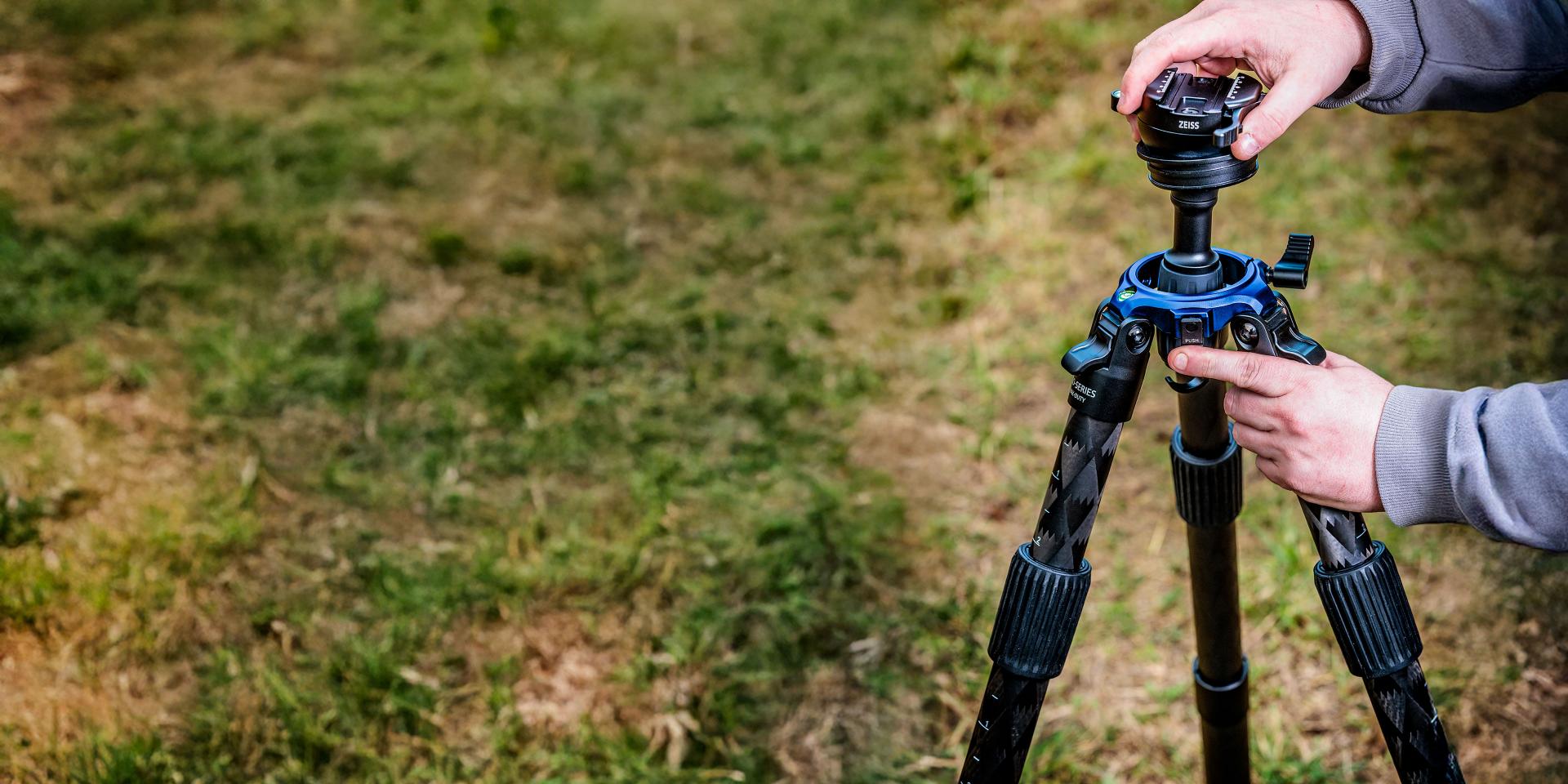

Person adjusting the head of a professional tripod setup on grass, with visible blue ZEISS components.

Fast & Easy Setup

  • Inverted 3-section leg design for ultimate compactness
  • Single-point leg adjustments with extended Twist-Locks
  • Modular, open apex system for maximum versatility
  • Removable through-the-center column for easy height adjustments
  • Easy-press leg adjustment mechanism
A man lies prone in a grassy field aiming a rifle equipped with a ZEISS scope, with a forested landscape in the background.

Robust Design

  • Machined aluminum frame and joints
  • Black, anodized finish
  • 10-layer, matrix-pattern, heavy-duty carbon fiber legs
  • Laboratory and field tested via thousands of cycles and various extreme environmental conditions

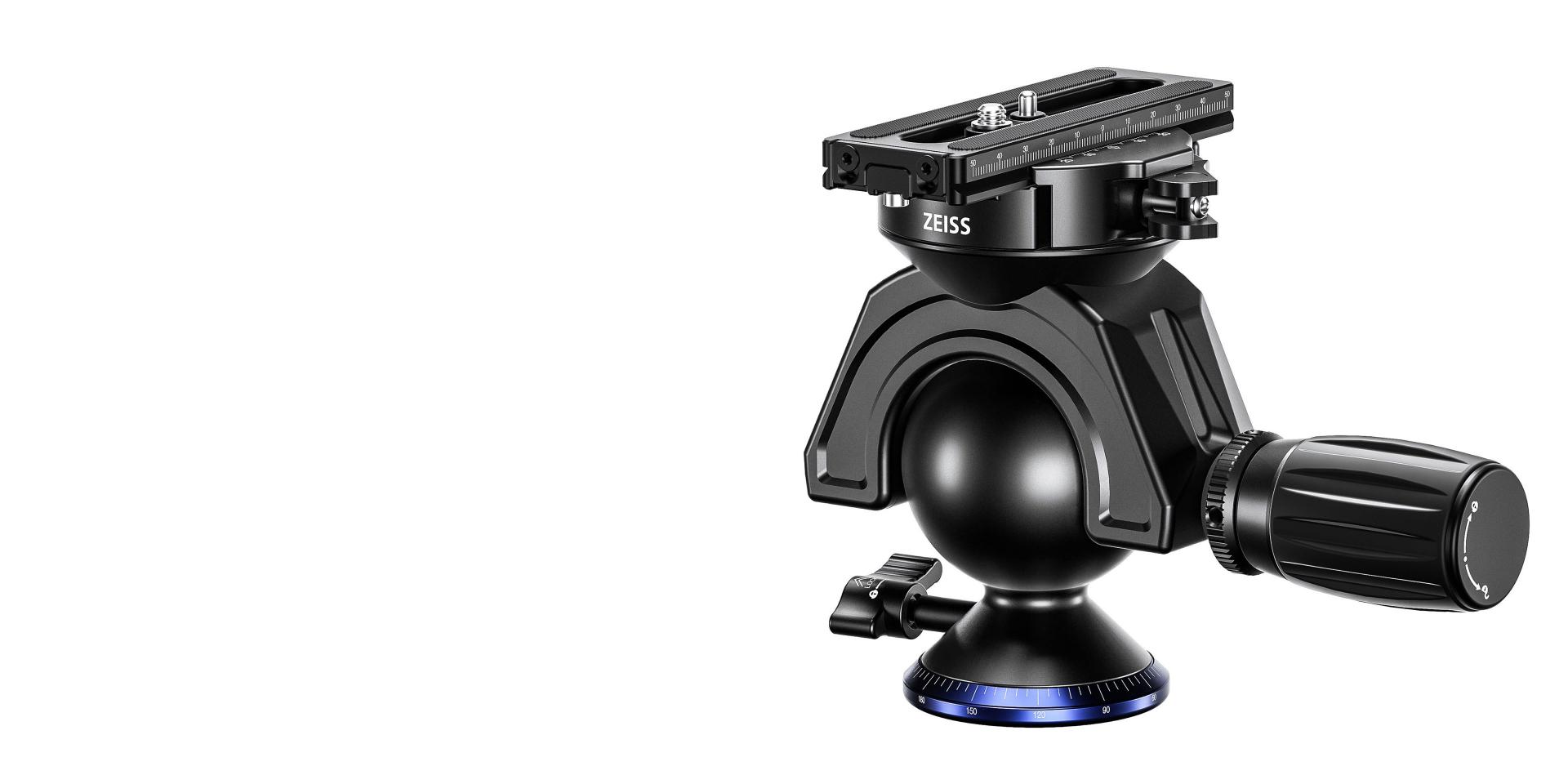

Black ZEISS tripod ball head with adjustable knobs and mounting plate, displayed on a white background.

Secure Connection

  • Arca-Swiss top mounting system
  • 3/8” Thread-on head
  • 1/4-20 extended balance plate with rubberized anti-slip strips
  • Strong, adjustable, ergo-friendly clamps and knobs

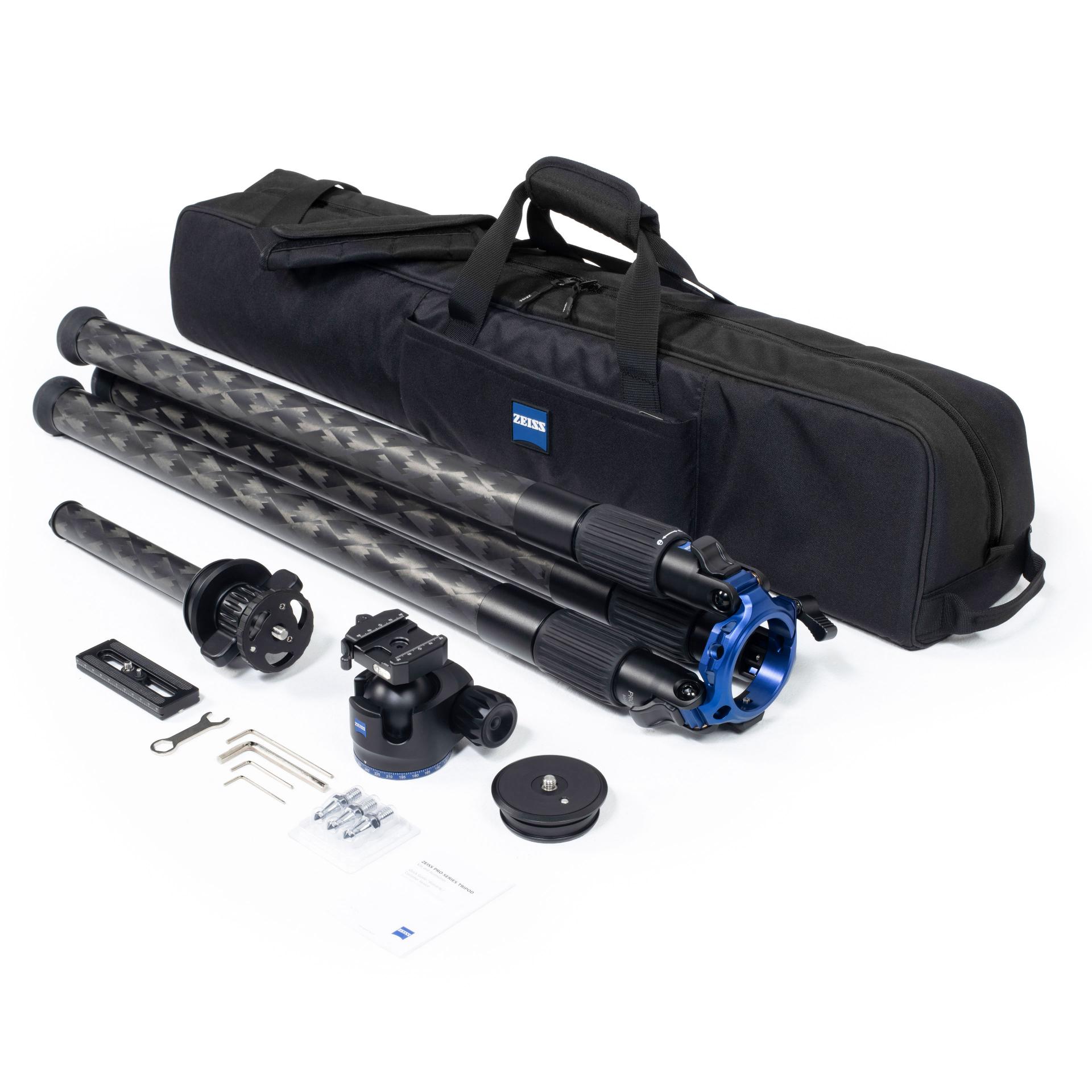

  • Carbon fiber tripod kit with multiple components, including a tripod head, mounting accessories, instruction manual, and a black carrying case featuring the ZEISS logo.

    With Ballhead V-60

  • Camouflaged ZEISS trail camera with a large external antenna, shown mounted inside an open protective case.

    With Ballhead L-55

What's included in the kit?

  • MAX-DUTY Tripod
  • Ballhead V-60 or Ballhead L-55
  • Removable Center Column
  • Flat Plate Adapter with 3/8” Stud
  • 1/4-20 Extended Adapter Plate
  • Tripod Bag with Shoulder Strap
  • Tool Kit
  • Spiked Feet
  • Quick Guide

Technical Data

ZEISS Pro-Series Tripod Kits
  • Head Type

    Ballhead V-60

    Weight (No Head, No Center Column)

    4.0 kg | 9.0 lbs

    Weight (With Head, No Center Column)

    5.2 kg | 11.4 lbs

    Weight (With Head, With Center Column)

    5.5 kg | 12.1 lbs

    Extended Height (No Head)

    173 cm | 67.9"

    Extended Height (With Head)

    187 cm | 71.5"

    Compressed Length (With Head, With Center Column)

    101 cm | 39.8"

    Maximum Load

    30 kg | 66 lbs

    Leg Tube Diameters

    44 mm | 40 mm | 36 mm

    Leg Angles

    24° | 55° | 85°

    Leg Sections

    3

    Locking Mechanism

    Twist Lock

    Center Column

    Extendable and Detachable

  • Head Type

    Ballhead L-55

    Weight (No Head, No Center Column)

    4.0 kg | 9.0 lbs

    Weight (With Head, No Center Column)

    5.0 kg | 11.0 lbs

    Weight (With Head, With Center Column)

    5.3 kg | 11.8 lbs

    Extended Height (No Head)

    173 cm | 67.9"

    Extended Height (With Head)

    184 cm | 69.7"

    Compressed Length (With Head, With Center Column)

    99 cm | 38"

    Maximum Load

    30 kg | 66 lbs

    Leg Tube Diameters

    44 mm | 40 mm | 36 mm

    Leg Angles

    24° | 55° | 85°

    Leg Sections

    3

    Locking Mechanism

    Twist Lock

    Center Column

    Extendable and Detachable

10年間の保証付き。

三脚をご登録いただくと、自動的に10年間の保証が有効になります。

ヘッドとアクセサリーの組み合わせ

ZEISS Pro-Series 三脚キット

Black ZEISS tripod head with a precision ball joint, pan handle, and quick-release mounting plate.
Black ZEISS tripod head with a precision ball joint, pan handle, and quick-release mounting plate.

ボールヘッド V-60

ZEISS プロシリーズ ボールヘッド V-60は、非常に多用途で、幅広いチルト角度と複合調整機能を備えております。最大115度のチルト角度は滑らかで精密な操作が可能で、毎回最適な角度を見つけることができます。ヘッドの動きの抵抗は、様々な取り付け機器の重量に合わせて容易に調整できます。

Black ZEISS tripod ball head with adjustment knobs, mounting plate, and leveling indicators.
Black ZEISS tripod ball head with adjustment knobs, mounting plate, and leveling indicators.

ボールヘッド L-55

ZEISSプロシリーズボールヘッドL-55は、信頼性と安定性に優れた人気のボール雲台です。慣れ親しんだ薄型デザインで、装着した機材の全調整角度は最大90°です。雲台はスムーズに作動し、正確な調整が可能なため、装着した光学機器や機材に最適なポジションを簡単に見つけることができます。

Black ZEISS tripod head with a built-in handle grip and quick-release plate attachment.
Black ZEISS tripod head with a built-in handle grip and quick-release plate attachment.

レベル調整ヘッド Q-75

レベル調整ヘッド Q-75 は、素早いアクセスを実現します。アルカ・スイス互換性に対応し、75mm アダプターが付属しております。シングルハンドル調整機構には、利便性を高める延長フックが採用されております。

Black padded neck strap with adjustable side straps and a central ZEISS logo on the front.
Black padded neck strap with adjustable side straps and a central ZEISS logo on the front.

アクセサリーバッグ

ZEISSアクセサリーバッグは、三脚の安定性を高めるため、特に風の強い条件下や重い機材を使用する場合に、三脚に重量を追加できるように設計されています。また、追加の機材を一時的に保管するための実用的なソリューションとしても役立ちます。

Precision camera mounting rail system with integrated spirit level and adjustable components, featuring the ZEISS logo.
Precision camera mounting rail system with integrated spirit level and adjustable components, featuring the ZEISS logo.

マルチデバイスレール

ツァイス マルチデバイスレールは、三脚ヘッドに複数の機器を同時に取り付け可能な汎用性の高いアクセサリーです。アルカ・スイス規格および1/4-20規格に対応しており、測距儀、スポッティングスコープ、双眼鏡、サーマルイメージング機器など、様々な機器を確実に固定できます。これにより、三脚セットアップの機能性と効率性を最大限に高める理想的なソリューションとなります。

Black ZEISS mounting clamp with adjustable knob and serrated gripping jaws, designed for secure attachment.
Black ZEISS mounting clamp with adjustable knob and serrated gripping jaws, designed for secure attachment.

双眼鏡クランプ

ZEISS双眼鏡クランプは、三脚座のない双眼鏡も含め、ほとんどのサイズとブランドの双眼鏡に適しています。エルゴフレンドリーな調整ノブは、スピードと使いやすさを追求して開発されました。大型の調整ノブは、冷たい手や手袋をはめた手でも使用でき、非常に確実な取り付けが可能です。このアクセサリーは、アルカスイス互換の雲台と組み合わせることで、厳しい条件下でも安定した観察を可能にします。

Black ZEISS-branded optical instrument accessory with ergonomic grip and adjustment knob, standing upright on a flat base.
Black ZEISS-branded optical instrument accessory with ergonomic grip and adjustment knob, standing upright on a flat base.

三脚-双眼鏡アダプター 1/4-20

ZEISS 双眼鏡アダプター 1/4-20は、双眼鏡を三脚に素早く簡単に取り付け可能にします。アーカスイスインターフェースにより、三脚ヘッドへの確実な接続を保証します。快適なグリップ設計により、負担なく操作と制御が可能です。本アダプターは、以下のツァイス製ZEISS 双眼鏡に対応しております:ツァイス ビクトリー SFL、ツァイス Conquest HDX、ツァイス Conquest HD、ツァイス Terra ED 42。

Black ZEISS camera mounting clamp with textured grip surfaces, adjustment knob, and central screw hole.
Black ZEISS camera mounting clamp with textured grip surfaces, adjustment knob, and central screw hole.

ライフル用クランプ

ZEISSライフル用クランプは、ライフルを簡単、迅速、確実に固定します。様々な射撃状況において、ライフルの安定性、追従性、正確な射撃位置を確保するのに役立ちます。エルゴフレンドリーなノブは、ライフル銃の安全で信頼性の高いレストを確保するために、グリップと調節のコントロールを向上させます。さらに、エンドユーザーは、フィールドで特定のアイテムを固定したり、サポートしたりする必要がある場合に、このアクセサリーが様々な方法で役立つことも実感しています。
